For timber haulage and recycling
Cranab truck cranes have been developed for both transport and material handling. The cranes can easily handle everything from timber and scrap to large containers.
Truck cranes
The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key qualities of performance, high productivity and sustainability.
Cranab's L-formed truck crane always puts you one step ahead: It is powerful, versatile and flexible, service-friendly and safe. The L-crane always comes fitted with a torque linkage, which makes it extra powerful and dependable, especially in heavy lifting scenarios.
{loadposition download-pdf-truck-crane-general}
Available version:
| Max. standard reach | 8,3 - 10 m |
| Max. lifting capacity | 106,4 - 115 kNm |
| Max. hydraulic extension | 3,1 - 3,7 m |
The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key properties of performance, high productivity and sustainability.

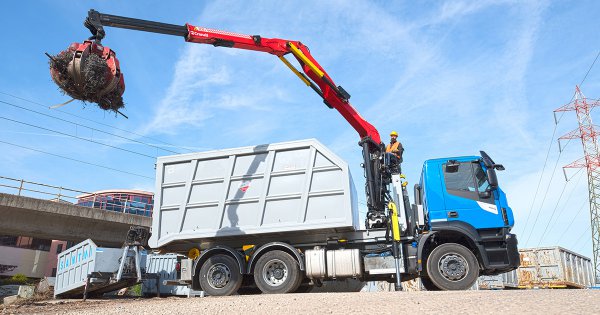

With Cranab's Z-crane you will achieve high productivity from the outset. The crane extends quickly and enables efficient production using extensively tested hydraulics and leading operating properties. Thanks to its compact design and the Z-crane's unique parking position the operator is able to take a maximum load every time.
{loadposition download-pdf-truck-crane-general}
Available versions:
| Max. standard reach | 7,7 - 10,5 m |
| Max. lifting capacity | 99,7 - 111,0 kNm |
| Max. hydraulic extension | 1,97 - 3,9 m |
The cranes are specially designed for trucks and consist of modern, proven technology and world-class hydraulics. In our development work, we have focused on drivers, contractors and the environment. We have placed the highest emphasis on class-leading handling, performance, high productivity and durability.
With Cranab's Z-crane you will be productive right from the start. The crane is quickly deployable and provides efficient production with carefully tested hydraulics and leading driving characteristics. Thanks to the compact solution and the Z-crane's unique parking position, you can load to the maximum every time.

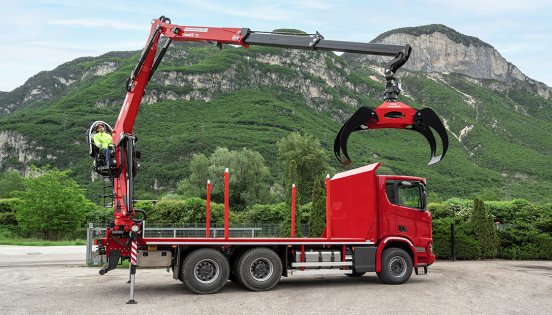

The TZ13 is available in two different versions from 8.5 to 10.5 metres reach.
{loadposition download-pdf-truck-crane-general}
Available versions:
| Max. standard reach | 8,5 - 10,5 m |
| Max. lifting capacity | 112 - 117 kNm |
| Max. hydraulic extension | 2,05 - 4 m |
The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key properties of performance, high productivity and sustainability.
With Cranab's Z-crane you will achieve high productivity from the outset. The crane extends quickly and enables efficient production using extensively tested hydraulics and leading operating properties. Thanks to its compact design and the Z-crane's unique parking position the operator is able to take a maximum load every time.
{loadposition download-pdf-truck-crane-general}
Available versions:
| Max. standard reach | 10,2 m |
| Max. lifting capacity | 170,0 kNm |
| Max. hydraulic extension | 3,7 m |
With Cranab's RZ cranes, every operator quickly becomes productive right from the start.
The RZ12 is available in four versions from 7.7 metres to 10.5 metres and covers the needs of most users. If even more power and strength is required, there is the strong giant RZ18.
{loadposition download-pdf-truck-crane-general}
Available versions:
| Max. standard reach | 7,7m - 10,5 m |
| Max. lifting capacity | 99,7 kNm - 110,5 kNm |
| Max. hydraulic extension | 1,97 m - 3,9 m |
With Cranab's RZ cranes, every operator quickly becomes productive right from the start.
The RZ13 is available in four versions from 8.5 metres to 10.5 metres and covers the needs of most users. If even more power and strength is required, there is the strong giant RZ18.
{loadposition download-pdf-truck-crane-general}
Available versions:
| Max. standard reach | 8,5 m - 10,5 m |
| Max. lifting capacity | 112 kNm - 122 kNm |
| Max. hydraulic extension | 2,05 m - 4,16 m |

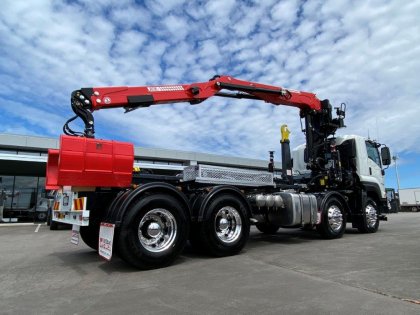

With Cranab's RZ cranes, every operator quickly becomes productive right from the start.
The RZ18 is available in four versions from 8.3 metres to 10.15 metres and covers the needs of most users.
{loadposition download-pdf-truck-crane-general}
Available versions:
| Max. standard reach | 10,2 m |
| Max. lifting capacity | 171,0 kNm |
| Max. hydraulic extension | 3,7 m |
| Telescopic version | 2 |
| Standard reach | 10,0 m |
| Lifting capacity | 106,4 kNm |
| Hydraulic extension | 3,1 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2535 kg |
| Telescopic version | 1 |
| Standard reach | 8,3 m |
| Lifting capacity | 115,00 kNm |
| Hydraulic extension | 1,57 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2415 kg |
| Telescopic version | 1 |
| Standard reach | 8,3 m |
| Lifting capacity | 108,0 kNm |
| Hydraulic extension | 1,97 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2425 kg |
| Telescopic version | 2 |
| Standard reach | 9,3 m |
| Lifting capacity | 102,8 kNm |
| Hydraulic extension | 3,1 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2475 kg |
| Telescopic version | 2 |
| Standard reach | 10,5 m |
| Lifting capacity | 99,7 kNm |
| Hydraulic extension | 3,9 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2515 kg |
| Telescopic version | 2 |
| Standard reach | 7,7 m |
| Lifting capacity | 111,0 kNm |
| Hydraulic extension | 2,53 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2200 kg |
| Telescopic version | 1 |
| Standard reach | 8,5 m |
| Lifting capacity | 117,00 kNm |
| Hydraulic extension | 2,05 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2380 kg |
| Telescopic version | 2 |
| Standard reach | 10,5 m |
| Lifting capacity | 112,00 kNm |
| Hydraulic extension | 4,0 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2450 kg |
| Telescopic version | 2 |
| Standard reach | 10,2 m |
| Lifting capacity | 170,00 kNm |
| Hydraulic extension | 3,7 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 3050 kg |
| Telescopic version | 2 |
| Standard reach | 7,7 m |
| Lifting capacity | 110,5 kNm |
| Hydraulic extension | 2,53 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2450 kg |
| Telescopic version | 1 |
| Standard reach | 8,3 m |
| Lifting capacity | 108,0 kNm |
| Hydraulic extension | 1,97 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2425 kg |
| Telescopic version | 2 |
| Standard reach | 9,3 m |
| Lifting capacity | 102,8 kNm |
| Hydraulic extension | 3,1 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2475 kg |
| Telescopic version | 2 |
| Standard reach | 10,5 m |
| Lifting capacity | 99,7 kNm |
| Hydraulic extension | 3,9 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2515 kg |
| Telescopic version | 1 |
| Standard reach | 8,5 m |
| Lifting capacity | 117,00 kNm |
| Hydraulic extension | 2,05 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2380 kg |
| Telescopic version | 2 |
| Standard reach | 10,5 m |
| Lifting capacity | 112,00 kNm |
| Hydraulic extension | 4,0 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2450 kg |
| Telescopic version | 1 |
| Standard reach | 8,5 m |
| Lifting capacity | 122,00 kNm |
| Hydraulic extension | 2,58 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 27 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2490 kg |
| Telescopic version | 1 |
| Standard reach | 9,5 m |
| Lifting capacity | 118,00 kNm |
| Hydraulic extension | 4,16 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 27 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2570 kg |
| Telescopic version | 1 |
| Standard reach | 8,3 m |
| Lifting capacity | 182,00 kNm |
| Hydraulic extension | 1,85 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2910 kg |
| Telescopic version | 2 |
| Standard reach | 8,3 m |
| Lifting capacity | 172,00 kNm |
| Hydraulic extension | 1,85 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 2850 kg |
| Telescopic version | 2 |
| Standard reach | 10,15 m |
| Lifting capacity | 171,00 kNm |
| Hydraulic extension | 3,7 m |
| Angle rotation | 425° |
| Rotation torque | 29,3 kNm |
| Working pressure | 26 Mpa |
| Pump capacity | 120 - 160 l/min |
| Crane weight | 3000 kg |
