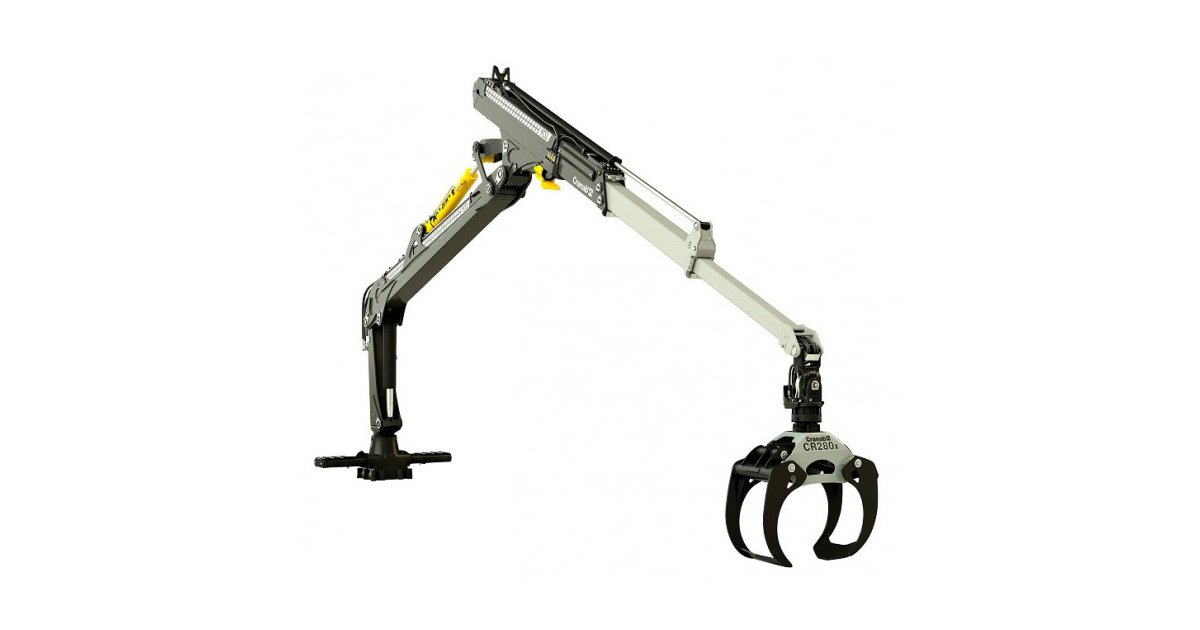

Cranab forwarder crane FC10

FC10

The FC series brings precision and dependability to forestry machines. Low weight and a compact construction were highly-prioritised factors during the development phase. Creating a complete and well-planned driving experience, with efficiency at every step, every day. It has fingertip sensitivity right the way out to the log, giving you the right speed and fluidity of motion.

It only takes a matter of seconds for the FC10 to leave a memorable impression. Almost immediately, you’ll see it is made with great care, with excellent running characteristics and a user-friendly operator’s station begging to be put to good use.
The crane lifts heavier loads higher and faster and with greater precision than ever before.

Download PDF




Available versions:

Max. reach 10 m
Lifting torque, gross 100 kNm
Max. lifting force 7,2 kN
Telescopic versions1
Max. reach8,0 m
Lifting torque, gross100 kNm
Lifting force at max. reach7,2 kN
Boom extension2,0 m
Gross slewing torque 28,7 kNm
Angle of rotation370°
Working pressure23,5 Mpa
Recommended flow120 - 200 l/min
Weight with lowest pillar elevation1610 kg
Telescopic versions1
Max. reach8,5 m
Lifting torque, gross100 kNm
Lifting force at max. reach6,5 kN
Boom extension2,4 m
Gross slewing torque 28,7 kNm
Angle of rotation370°
Working pressure23,5 Mpa
Recommended flow120 - 200 l/min
Weight with lowest pillar elevation1630 kg
Telescopic versions2
Max. reach9,8 m
Lifting torque, gross100 kNm
Lifting force at max. reach2,7 kN
Boom extension4,0 m
Gross slewing torque 28,7 kNm
Angle of rotation370°
Working pressure23,5 Mpa
Recommended flow120 - 200 l/min
Weight with lowest pillar elevation1735 kg
Telescopic versions2
Max. reach10,0 m
Lifting torque, gross100 kNm
Lifting force at max. reach4,8 kN
Boom extension4,0 m
Gross slewing torque 28,7 kNm
Angle of rotation370°
Working pressure23,5 Mpa
Recommended flow120 - 200 l/min
Weight with lowest pillar elevation1745 kg
