Cranab Construction Grapples

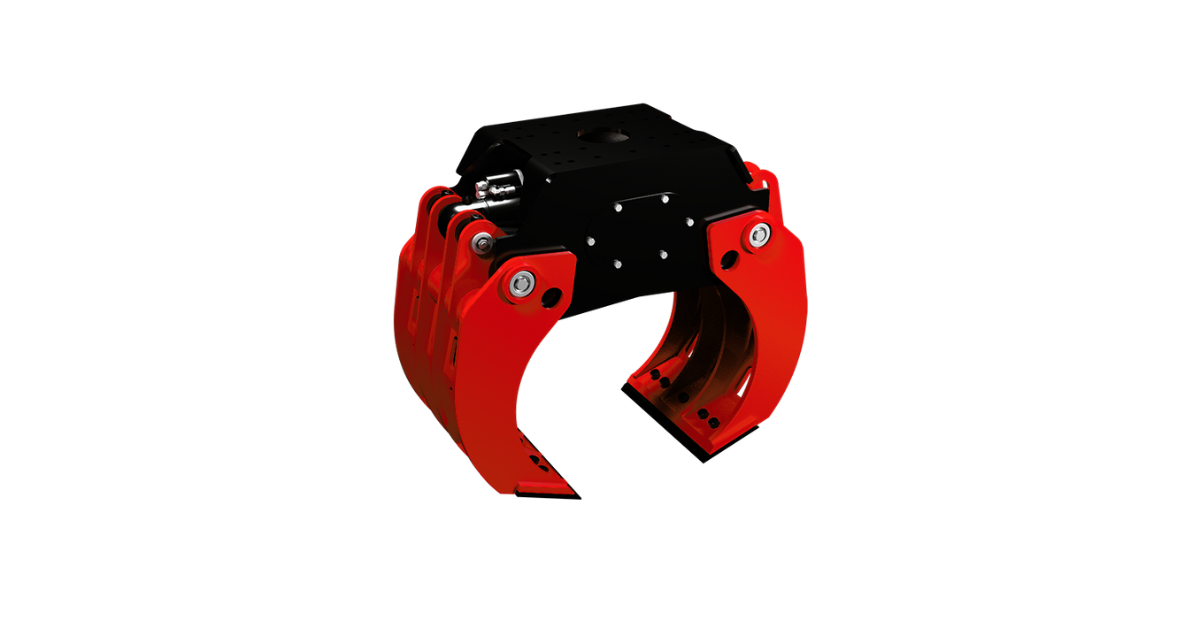

Sorting Grapple

The SoG grapple is a sorting grapple for large excavators and the very heaviest jobs.

It has an extra wide design and the slightly downward-facing claws that meet tip-to-tip provide maximum precision. Suitable for large dimension demolition, stone sorting, recycling and scrap handling.

Download PDF




Available model:

For the heaviest jobs

SoG80

MPa25 Mpa
Weight795 Kg
m20.42 m²
Width - max grapple2598 mm
Width - min grapple624 mm
Depth900 mm
Height - max open811 mm
Height Tip to tip1189 mm
Tip force at max41.2 kN
Tip force tip to tip21.7 kN
Max load12000 Kg
Expander pinsYes
