We produce three series of grapples for global forestry, optimised for forwarders and truck cranes as well as chippers. Whichever series you choose, has been produced to enable you to work effectively with complete control and precision.
We produce three series of grapples for global forestry, optimised for forwarders and truck cranes as well as chippers. Whichever series you choose, it has been produced to enable you to work effectively with complete control and precision.

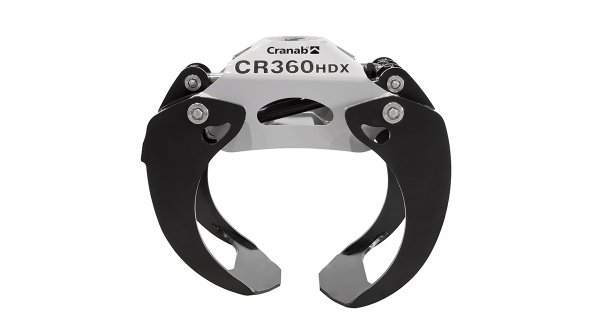

CR models are suitable for working with logs of timber.
{loadposition download-pdf-grapples}
CR models are suitable for working with logs of timber.
We produce three series of grapples for global forestry, optimised for forwarders and truck cranes as well as chippers. Whichever series you choose, has been produced to enable you to work effectively with complete control and precision.
CE models are suitable for working with wood fuel.
{loadposition download-pdf-grapples}
CE is suitable for working with wood fuel.
We produce three series of grapples for global forestry, optimised for forwarders and truck cranes as well as chippers. Whichever series you choose, has been produced to enable you to work effectively with complete control and precision.
CI models are suitable for handling single logs.
{loadposition download-pdf-grapples}
CI models are suitable for handling single logs.
The Cranab CT grapple is purpose built for truck cranes. The series consists of three sizes with the model designations, CT35, CT40 and CT50, and complements the entire Cranab grapple programme.
{loadposition download-pdf-grapples}
The Cranab CT grapple is purpose built for truck cranes.
Cranab's construction grapple series was created and developed for attachment to excavators.
Our construction grapples are based on the same philosophy as our other grapples: Function, quality, robustness and strength combined with flexibility, smart material choices and optimised weight.
{loadposition download-pdf-grapples}
Suitable for excavators 3-30 tons
The GSK grapple saw cassettes are supplied for grapples ranging from the CR/CE250 up to the CR400, and with saw bar lengths ranging from 75–100 cm. Saw chain tensioning and saw bar return are both automatic. The chain is lubricated from a separate lubricating oil tank, and the amount of oil can be easily adjusted.
{loadposition download-pdf-grapples}
The GSK grapple saw cassettes are supplied for grapples ranging from the CR/CE250 up to the CR400 and with saw bar lengths ranging from 75–100 cm.
| Max. working pressure | 19 Mpa |
| Weight | 100 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,19 m² |
| Max. gripping width | 1290 mm |
| Min. gripping diameter | 88 mm |
| Grapple width | 362 mm |
| Height - max. gripping width | 690 mm |
| Height - tip to tip | 772 mm |
| POWER AT TIP | |
| Max. gripping width | 7,4 kN |
| Min. gripping width | 9,1 kN |
| Max. load | 2000 Kg |
| Expander pins |
| Max. working pressure | 21 Mpa |
| Weight | 105 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,22 m² |
| Max. gripping width | 1443 mm |
| Min. gripping diameter | 94 mm |
| Grapple width | 362 mm |
| Height - max. gripping width | 780 mm |
| Height - tip to tip | 800 mm |
| POWER AT TIP | |
| Max. gripping width | 7,7 kN |
| Min. gripping width | 9,8 kN |
| Max. load | 2000 Kg |
| Expander pins |
| Max. working pressure | 25 Mpa |
| Weight | 190 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,26 m² |
| Max. gripping width | 1500 mm |
| Min. gripping diameter | 94 mm |
| Grapple width | 458 mm |
| Height - max. gripping width | 793 mm |
| Height - tip to tip | 893 mm |
| POWER AT TIP | |
| Max. gripping width | 12,4 kN |
| Min. gripping width | 14,4 kN |
| Max. load | 3500 Kg |
| Expander pins |
| Max. working pressure | 25 Mpa |
| Weight | 245 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,32 m² |
| Max. gripping width | 1818 mm |
| Min. gripping diameter | 130 mm |
| Grapple width | 503 mm |
| Height - max. gripping width | 803 mm |
| Height - tip to tip | 976 mm |
| POWER AT TIP | |
| Max. gripping width | 16,6 kN |
| Min. gripping width | 18,5 kN |
| Max. load | 4000 Kg |
| Expander pins |
| Max. working pressure | 25 Mpa |
| Weight | 315 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,40 m² |
| Max. gripping width | 1976 mm |
| Min. gripping diameter | 136 mm |
| Grapple width | 539 mm |
| Height - max. gripping width | 897 mm |
| Height - tip to tip | 1073 mm |
| POWER AT TIP | |
| Max. gripping width | 16,2 kN |
| Min. gripping width | 18,2 kN |
| Max. load | 4000 Kg |
| Expander pins |
| Max. working pressure | 25 Mpa |
| Weight | 330 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,44 m² |
| Max. gripping width | 1973 mm |
| Min. gripping diameter | 110 mm |
| Grapple width | 535 mm |
| Height - max. gripping width | 966 mm |
| Height - tip to tip | 1130 mm |
| POWER AT TIP | |
| Max. gripping width | 16,1 kN |
| Min. gripping width | 18,2 kN |
| Max. load | 4000 Kg |
| Expander pins |
| Max. working pressure | 25 Mpa |
| Weight | 410 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,55 m² |
| Max. gripping width | 2446 mm |
| Min. gripping diameter | 152 mm |
| Grapple width | 539 mm |
| Height - max. gripping width | 975 mm |
| Height - tip to tip | 1247 mm |
| POWER AT TIP | |
| Max. gripping width | 16 kN |
| Min. gripping width | 13,3 kN |
| Max. load | 4000 Kg |
| Expander pins |
| Max. working pressure | 21 Mpa |
| Weight | 120 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,21 m² |
| Max. gripping width | 1300 mm |
| Min. gripping diameter | 93,5 mm |
| Grapple width | 376 mm |
| Height - max. gripping width | 703 mm |
| Height - tip to tip | 791 mm |
| POWER AT TIP | |
| Max. gripping width | 7,7 kN |
| Min. gripping width | 9,8 kN |
| Max. load | 2000 Kg |
| Expander pins |
| Max. working pressure | 25 Mpa |
| Weight | 205 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,23 m² |
| Max. gripping width | 1524 mm |
| Min. gripping diameter | 98 mm |
| Grapple width | 476 mm |
| Height - max. gripping width | 759 mm |
| Height - tip to tip | 882 mm |
| POWER AT TIP | |
| Max. gripping width | 12,4 kN |
| Min. gripping width | 14,4 kN |
| Max. load | 3500 Kg |
| Expander pins |
| Max. working pressure | 25 Mpa |
| Weight | 265 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,29 m² |
| Max. gripping width | 1836 mm |
| Min. gripping diameter | 121 mm |
| Grapple width | 523 mm |
| Height - max. gripping width | 758 mm |
| Height - tip to tip | 957 mm |
| POWER AT TIP | |
| Max. gripping width | 16,6 kN |
| Min. gripping width | 18,5 kN |
| Max. load | 4000 Kg |
| Expander pins |
| Max. working pressure | 23,5 Mpa |
| Weight | 180 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,14 m² |
| Max. gripping width | 1098 mm |
| Min. gripping diameter | 44 mm |
| Grapple width | 320 mm |
| Height - max. gripping width | 791 mm |
| Height - tip to tip | 867 mm |
| POWER AT TIP | |
| Max. gripping width | 11,7 kN |
| Min. gripping width | 15,7 kN |
| Max. load | 3500 Kg |
| Expander pins |
| Max. working pressure | 25 Mpa |
| Weight | 230 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,32 m² |
| Max. gripping width | 1818 mm |
| Min. gripping diameter | 130 mm |
| Grapple width | 499 mm |
| Height - max. gripping width | 804 mm |
| Height - tip to tip | 977 mm |
| POWER AT TIP | |
| Max. gripping width | 16,6 kN |
| Min. gripping width | 18,5 kN |
| Max. load | 4000 Kg |
| Expander pins |
| Max. working pressure | 25 Mpa |
| Weight | 250 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,40 m² |
| Max. gripping width | 1978 mm |
| Min. gripping diameter | 129 mm |
| Grapple width | 499 mm |
| Height - max. gripping width | 885 mm |
| Height - tip to tip | 1065 mm |
| POWER AT TIP | |
| Max. gripping width | 16,2 kN |
| Min. gripping width | 18,2 kN |
| Max. load | 4000 Kg |
| Expander pins |
| Max. working pressure | 25 Mpa |
| Weight | 265 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,50 m² |
| Max. gripping width | 2079 mm |
| Min. gripping diameter | 170 mm |
| Grapple width | 499 mm |
| Height - max. gripping width | 957 mm |
| Height - tip to tip | 1123 mm |
| POWER AT TIP | |
| Max. gripping width | 15,4 kN |
| Min. gripping width | 17 kN |
| Max. load | 4000 Kg |
| Expander pins |
| Max. working pressure | 235 Mpa |
| Weight | 340 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,33 m² |
| Max. gripping width | 1816 mm |
| Min. gripping diameter | 124 mm |
| Grapple width | 576 mm |
| Height - max. gripping width | 803 mm |
| Height - tip to tip | 976 mm |
| POWER AT TIP | |
| Max. gripping width | 16 kN |
| Min. gripping width | 15,7 kN |
| Max. load | 7000 Kg |
| Expander pins |
| Max. working pressure | 235 Mpa |
| Weight | 375 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,40 m² |
| Max. gripping width | 1980 mm |
| Min. gripping diameter | 129 mm |
| Grapple width | 576 mm |
| Height - max. gripping width | 885 mm |
| Height - tip to tip | 1073 mm |
| POWER AT TIP | |
| Max. gripping width | 16,4 kN |
| Min. gripping width | 18,5 kN |
| Max. load | 7000 Kg |
| Expander pins |
| Max. working pressure | 235 Mpa |
| Weight | 200 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,26 m² |
| Max. gripping width | 1500 mm |
| Min. gripping diameter | 90 mm |
| Grapple width | 456 mm |
| Height - max. gripping width | 784 mm |
| Height - tip to tip | 886 mm |
| POWER AT TIP | |
| Max. gripping width | 9,5 kN |
| Min. gripping width | 12 kN |
| Max. load | 3500 Kg |
| Expander pins |
| Max. working pressure | 235 Mpa |
| Weight | 270 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,33 m² |
| Max. gripping width | 1820 mm |
| Min. gripping diameter | 124 mm |
| Grapple width | 520 mm |
| Height - max. gripping width | 801 mm |
| Height - tip to tip | 1015 mm |
| POWER AT TIP | |
| Max. gripping width | 16 kN |
| Min. gripping width | 15,7 kN |
| Max. load | 5000 Kg |
| Expander pins |
| Max. working pressure | 235 Mpa |
| Weight | 340 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,33 m² |
| Max. gripping width | 1816 mm |
| Min. gripping diameter | 124 mm |
| Grapple width | 576 mm |
| Height - max. gripping width | 803 mm |
| Height - tip to tip | 976 mm |
| POWER AT TIP | |
| Max. gripping width | 16 kN |
| Min. gripping width | 15,7 kN |
| Max. load | 7000 Kg |
| Expander pins |
| Max. working pressure | 235 Mpa |
| Weight | 295 Kg |
| DIMENSIONS | |
| Area - tip to tip | 0,40 m² |
| Max. gripping width | 1980 mm |
| Min. gripping diameter | 129 mm |
| Grapple width | 520 mm |
| Height - max. gripping width | 885 mm |
| Height - tip to tip | 1073 mm |
| POWER AT TIP | |
| Max. gripping width | 16,5 kN |
| Min. gripping width | 19,9 kN |
| Max. load | 5500 Kg |
| Expander pins |
| Weight excl. rotator | 275 kg |
| Saw bar length | |
| Max. cutting diameter | 48 cm |
| Max. load | 3500 kg |
| Saw motor displacement | 14 cc |
| Rec. working pressure | 19 - 25 Mpa |
| Rec. flow (min–max) | 80 - 100 l/min |
| Saw bar | |
| Chain tensioning | Auto |
| Chain lubrication | Adjustable |
| Oil tank | Separate |
| Saw bar return | |
| Saw cassette weight, incl. adapter | 110 kg |
| Weight excl. rotator | 310 kg |
| Saw bar length | |
| Max. cutting diameter | 50 cm |
| Max. load | 3500 kg |
| Saw motor displacement | 14 cc |
| Rec. working pressure | 19 - 25 Mpa |
| Rec. flow (min–max) | 80 - 100 l/min |
| Saw bar | |
| Chain tensioning | Auto |
| Chain lubrication | Adjustable |
| Oil tank | Separate |
| Saw bar return | |
| Saw cassette weight, incl. adapter | 110 kg |
| Weight excl. rotator | 380 kg |
| Saw bar length | |
| Max. cutting diameter | 55 cm |
| Max. load | 5000 kg |
| Saw motor displacement | 14 cc |
| Rec. working pressure | 19 - 25 Mpa |
| Rec. flow (min–max) | 80 - 100 l/min |
| Saw bar | |
| Chain tensioning | Auto |
| Chain lubrication | Adjustable |
| Oil tank | Separate |
| Saw bar return | |
| Saw cassette weight, incl. adapter | 110 kg |
| Weight excl. rotator | 450 kg |
| Saw bar length | |
| Max. cutting diameter | 55 cm |
| Max. load | 7000 kg |
| Saw motor displacement | 14 cc |
| Rec. working pressure | 19 - 25 Mpa |
| Rec. flow (min–max) | 80 - 100 l/min |
| Saw bar | |
| Chain tensioning | Auto |
| Chain lubrication | Adjustable |
| Oil tank | Separate |
| Saw bar return | |
| Saw cassette weight, incl. adapter | 110 kg |
| Weight excl. rotator | 405 kg |
| Saw bar length | |
| Max. cutting diameter | 55 cm |
| Max. load | 5500 kg |
| Saw motor displacement | 14 cc |
| Rec. working pressure | 19 - 25 Mpa |
| Rec. flow (min–max) | 80 - 100 l/min |
| Saw bar | |
| Chain tensioning | Auto |
| Chain lubrication | Adjustable |
| Oil tank | Separate |
| Saw bar return | |
| Saw cassette weight, incl. adapter | 110 kg |
| Weight excl. rotator | 515 kg |
| Saw bar length | |
| Max. cutting diameter | 60 cm |
| Max. load | 7000 kg |
| Saw motor displacement | 14 cc |
| Rec. working pressure | 19 - 25 Mpa |
| Rec. flow (min–max) | 80 - 100 l/min |
| Saw bar | |
| Chain tensioning | Auto |
| Chain lubrication | Adjustable |
| Oil tank | Separate |
| Saw bar return | |
| Saw cassette weight, incl. adapter | 110 kg |
GRAPPLE SAWS
| Weight excl. rotator | 335 kg |
| Saw bar length | |
| Max. cutting diameter | 50 cm |
| Max. load | 3500 kg |
| Saw motor displacement | 14 cc |
| Rec. working pressure | 19 - 25 Mpa |
| Rec. flow (min–max) | 80 - 100 l/min |
| Saw bar | |
| Chain tensioning | Auto |
| Chain lubrication | Adjustable |
| Oil tank | Separate |
| Saw bar return | |
| Saw cassette weight, incl. adapter | 110 kg |
| Weight excl. rotator | 405 kg |
| Saw bar length | |
| Max. cutting diameter | 55 cm |
| Max. load | 5000 kg |
| Saw motor displacement | 14 cc |
| Rec. working pressure | 19 - 25 Mpa |
| Rec. flow (min–max) | 80 - 100 l/min |
| Saw bar | |
| Chain tensioning | Auto |
| Chain lubrication | Adjustable |
| Oil tank | Separate |
| Saw bar return | |
| Saw cassette weight, incl. adapter | 110 kg |
| MPa | 25 Mpa |
| Weight | 150 Kg |
| m2 | 0.19 m² |
| Width - max grapple | 1290 mm |
| Width - min grapple | 82 mm |
| Depth | 341 mm |
| Height - max open | 737 mm |
| Height Tip to tip | 818 mm |
| Tip force at max | 9.5 kN |
| Tip force tip to tip | 12 kN |
| Max load | 3000 Kg |
| Expander pins |
| MPa | 25 Mpa |
| Weight | 230 Kg |
| m2 | 0.26 m² |
| Width - max grapple | 1500 mm |
| Width - min grapple | 0 mm |
| Depth | 456 mm |
| Height - max open | 826 mm |
| Height Tip to tip | 923 mm |
| Tip force at max | 12.4 kN |
| Tip force tip to tip | 14.4 kN |
| Max load | 4800 Kg |
| Expander pins |
| MPa | 25 Mpa |
| Weight | 393 Kg |
| m2 | 0.33 m² |
| Width - max grapple | 1816 mm |
| Width - min grapple | 125 mm |
| Depth | 576 mm |
| Height - max open | 847 mm |
| Height Tip to tip | 1015 mm |
| Tip force at max | 16.5 kN |
| Tip force tip to tip | 18.1 kN |
| Max load | 7000 Kg |
| Expander pins |
| MPa | 25 Mpa |
| Weight | 435 Kg |
| m2 | 0.40 m² |
| Width - max grapple | 1980 mm |
| Width - min grapple | 135 mm |
| Depth | 576 mm |
| Height - max open | 932 mm |
| Height Tip to tip | 1107 mm |
| Tip force at max | 19.9 kN |
| Tip force tip to tip | 22 kN |
| Max load | 8400 Kg |
| Expander pins |
| MPa | 25 Mpa |
| Weight | 515 Kg |
| m2 | 0.62 m² |
| Width - max grapple | 2591 mm |
| Width - min grapple | 177 mm |
| Depth | 576 mm |
| Height - max open | 954 mm |
| Height Tip to tip | 1300 mm |
| Tip force at max | 16.4 kN |
| Tip force tip to tip | 20.5 kN |
| Max load | 12000 Kg |
| Expander pins |
| MPa | 25 Mpa |
| Weight | 465 Kg |
| m2 | 0.20 m² |
| Width - max grapple | 1821 mm |
| Width - min grapple | 411 mm |
| Depth | 540 mm |
| Height - max open | 683 mm |
| Height Tip to tip | 842 mm |
| Tip force at max | 36.3 kN |
| Tip force tip to tip | 19.9 kN |
| Max load | 7000 Kg |
| Expander pins |
| MPa | 25 Mpa |
| Weight | 535 Kg |
| m2 | 0.24 m² |
| Width - max grapple | 2097 mm |
| Width - min grapple | 477 mm |
| Depth | 540 mm |
| Height - max open | 658 mm |
| Height Tip to tip | 942 mm |
| Tip force at max | 49.7 kN |
| Tip force tip to tip | 20.5 kN |
| Max load | 8400 Kg |
| Expander pins |
| MPa | 25 Mpa |
| Weight | 795 Kg |
| m2 | 0.42 m² |
| Width - max grapple | 2598 mm |
| Width - min grapple | 624 mm |
| Depth | 900 mm |
| Height - max open | 811 mm |
| Height Tip to tip | 1189 mm |
| Tip force at max | 41.2 kN |
| Tip force tip to tip | 21.7 kN |
| Max load | 12000 Kg |
| Expander pins |
